Measurement Guides for Wooden Gates

Below are guides for measuring for wooden gates. When taking your measurements measure at the bottom, middle and top. Take the smallest measurement then use the guide to deduct the allowences this will give you your gate sizes.

If you are unsure then we are more than happy to advise where necessary.

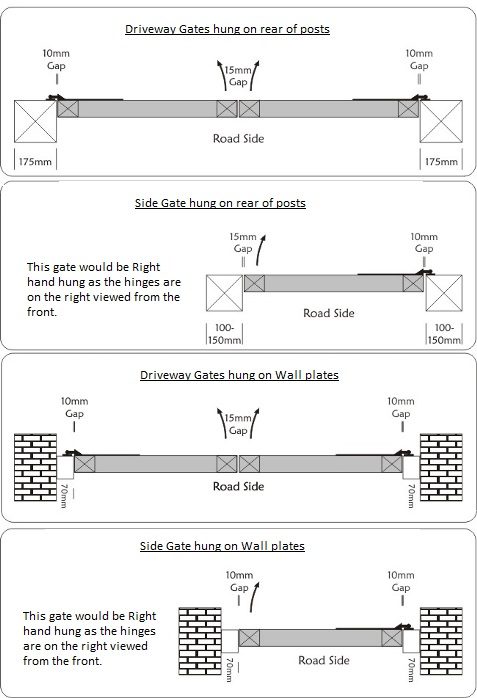

Driveway & Side Gates

Guides for Wooden Driveway Gates and Side Gates.

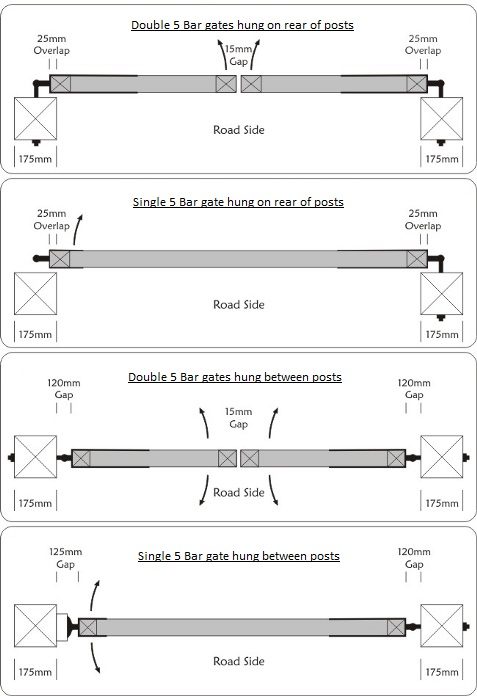

5 Bar Gates

Guides for Wooden 5 Bar Gates.

Measurement Guides for Aluminium Gates

Below are guides for measuring for aluminium gates. When taking your measurements measure at the bottom, middle and top. Take the smallest measurement then use the guide to deduct the allowences this will give you your gate sizes.

If you are unsure then we are more than happy to advise where necessary.

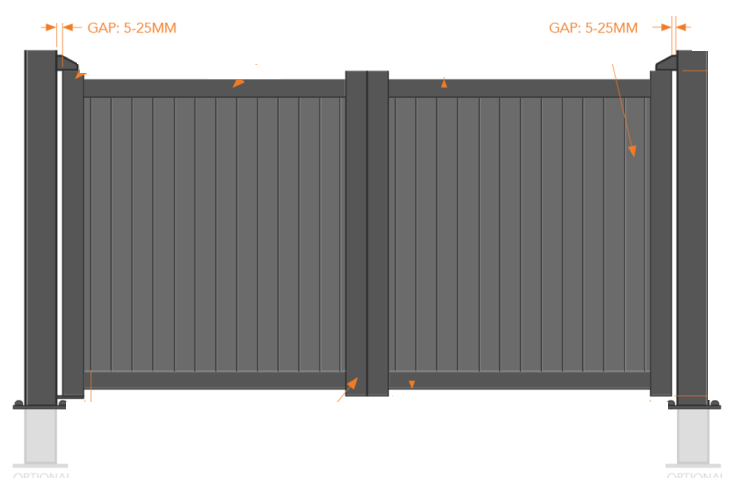

Driveway Gates

Guide for Driveway Gates.

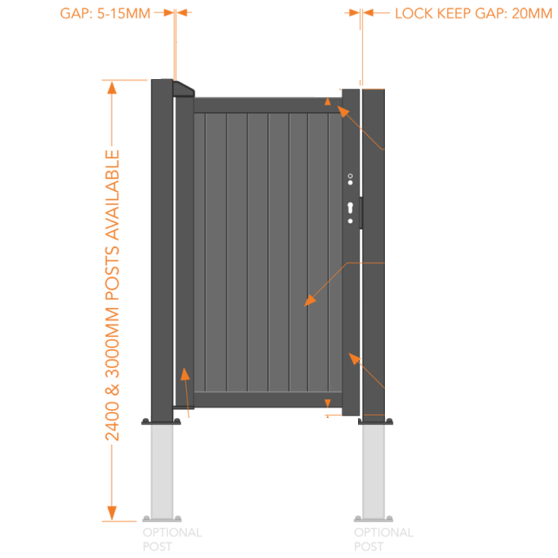

Side Gates

Guide for Side Gates.
